PLGT-420 Full-auto Rotary ECO Filter Paper Pleating Production Line
Consists
1. Auto paper de-coiler
2. Filter pre-slitter
3. Water steam device
4. Auto counter
5. Six marking rollers' device
6. Pre-heat fold device before pleated
7. Paper pleat and collect system
8. Conveyer device
9. Paper formed heater
Specification
Speed |
0~30m/min |
Max paper width |
420mm |
Min paper width |
30mm |
Max pleat height |
50mm |
Min pleat height |
12mm |
Customize the roller size and shape |
|
Temp. control scope | normal temp.~300oC |
Heat power | 14kw |
Total power | 16kw |
Working air pressure | 0.6MPa |
Power supply | 380V/50Hz |
M/C weight | 1000kg |
M/C size | 6000×900×1200mm(L×W×H) |
Features

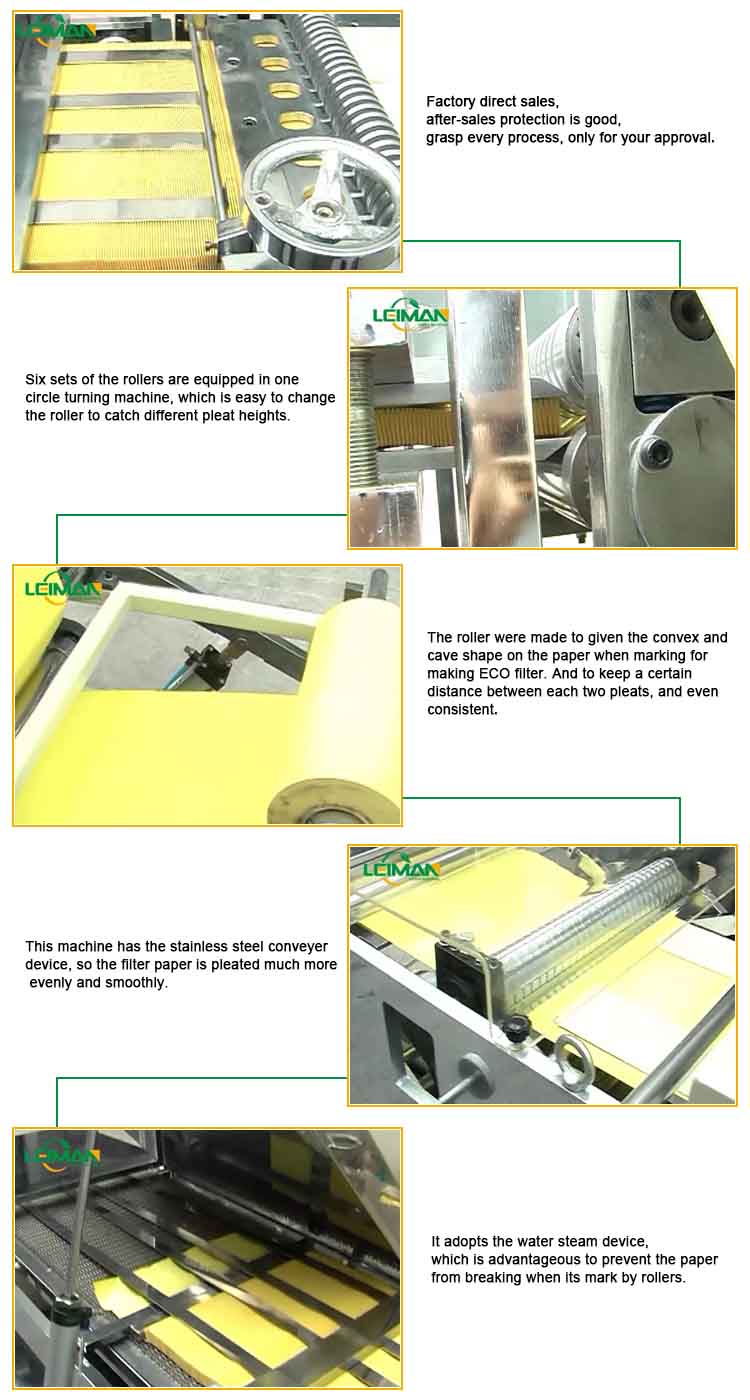

1. The round air pre-slitting knives can be easily adjusted and pressures well balanced.
2. It adopts the water steam device, which is advantageous to prevent the paper from breaking when its mark by rollers.
3. Six sets of the rollers are equipped in one circle turning machine, which is easy to change the roller to catch different pleat heights.
4. The roller were made to given the convex and cave shape on the paper when marking for making ECO filter. And to keep a certain distance between each two pleats, and even consistent.
5. This automatically production line has the working process of auto count marking, pleating, pre-heat forming.
6. This machine has the stainless steel conveyer device, so the filter paper is pleated much more evenly and smoothly.
7. This production line is controlled computerized and simple to operate.

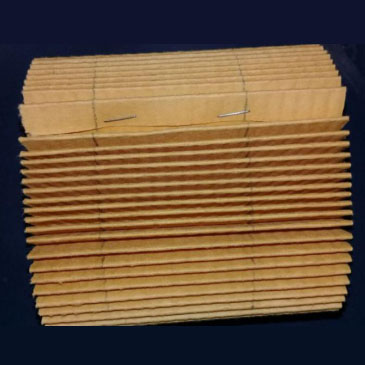

This rotary paper pleating production line is used for making the ECO filter element.
