Plgt-1000n Newest Full-auto Rotary Filter Paper Pleating Production Line

Plgt-1000n Newest Full-auto Rotary Filter Paper Pleating Production Line

Plgt-1000n Newest Full-auto Rotary Filter Paper Pleating Production Line 7

Overview



Consists
1. Auto paper de-coiler
2. Paper Pre-slitting machine
3. Pre-heating device before pleating
4. Auto counter
5. Water steam device
6. The specification of the drum can be changed arbitrarily
7. Roller and gear collecting device
8. Pleated paper heat forming and conveyer device

Specification

Product capability 0~30m/min
Max.width 1000mm
Min.width
100mm
Max.pleat height 70mm
Min.pleat height 10mm
Customize the rollers sizes
Temp.control
normal temp.~200oC
Main power 24kw
Working air pressure 0.6MPa
Power supply 380V/50Hz
M/C weight 850kg
M/C dimension 5200×1490×1170mm(L×W×H)

Features
1. The pre-slitter uses pneumatic cutting round knife, which is adjusted simply and pressed evenly.
2. This machine equips the pre-heating and water steam device, to prevent the paper breaking when roller marking.
3. This machine equips the gear collecting system, so to faster the pleating speed and well pleated the paper.
4. This high automatic machine has the process of the process of the auto count marking,pleating,pre-heating and forming.
5. This machine is computer control and simple operation.

Applications
This machine is used for pleating and forming the HDAF filter element.

Our Service



Our leiman filter solution group is controlling shareholder for Pulan filter machine factory, we are invest for one stop filter service together. We are the exclusive export company for Pulan filter machine factory. We only provide exclusive lifetime (7*24h) service to customers who purchase from our company.

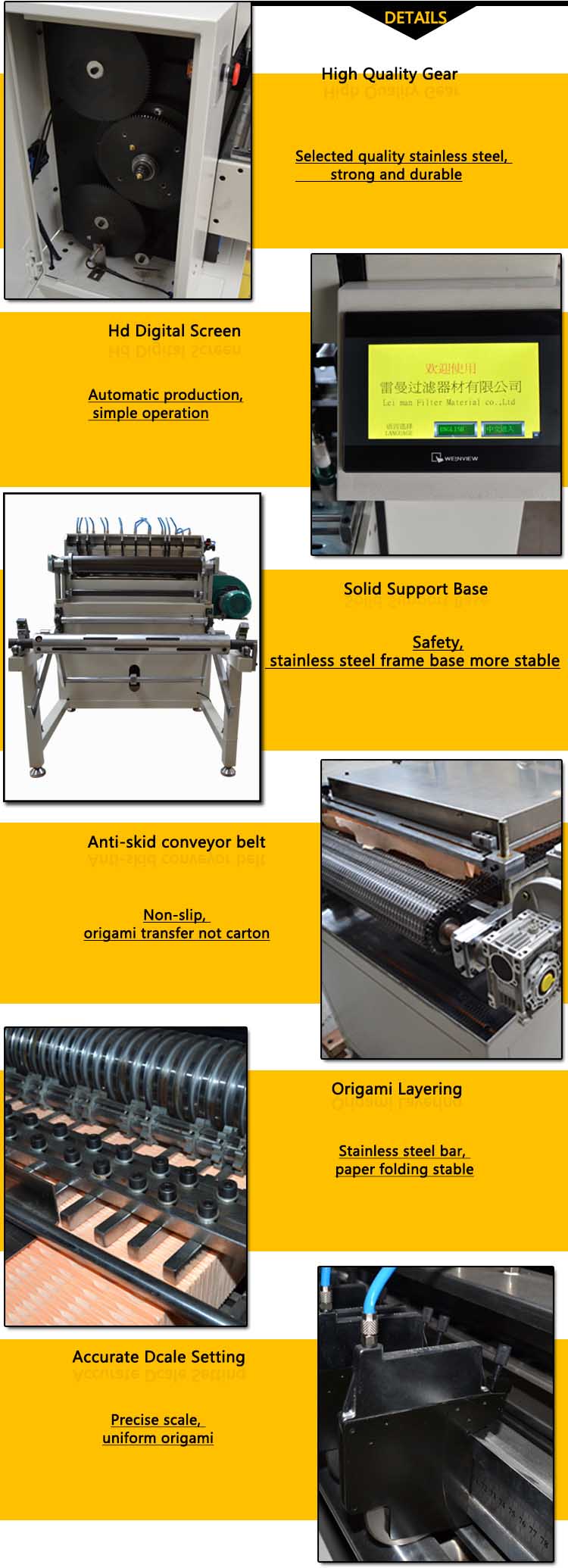

Products Details


Plgt-1000n Newest Full-auto Rotary Filter Paper Pleating Production Line

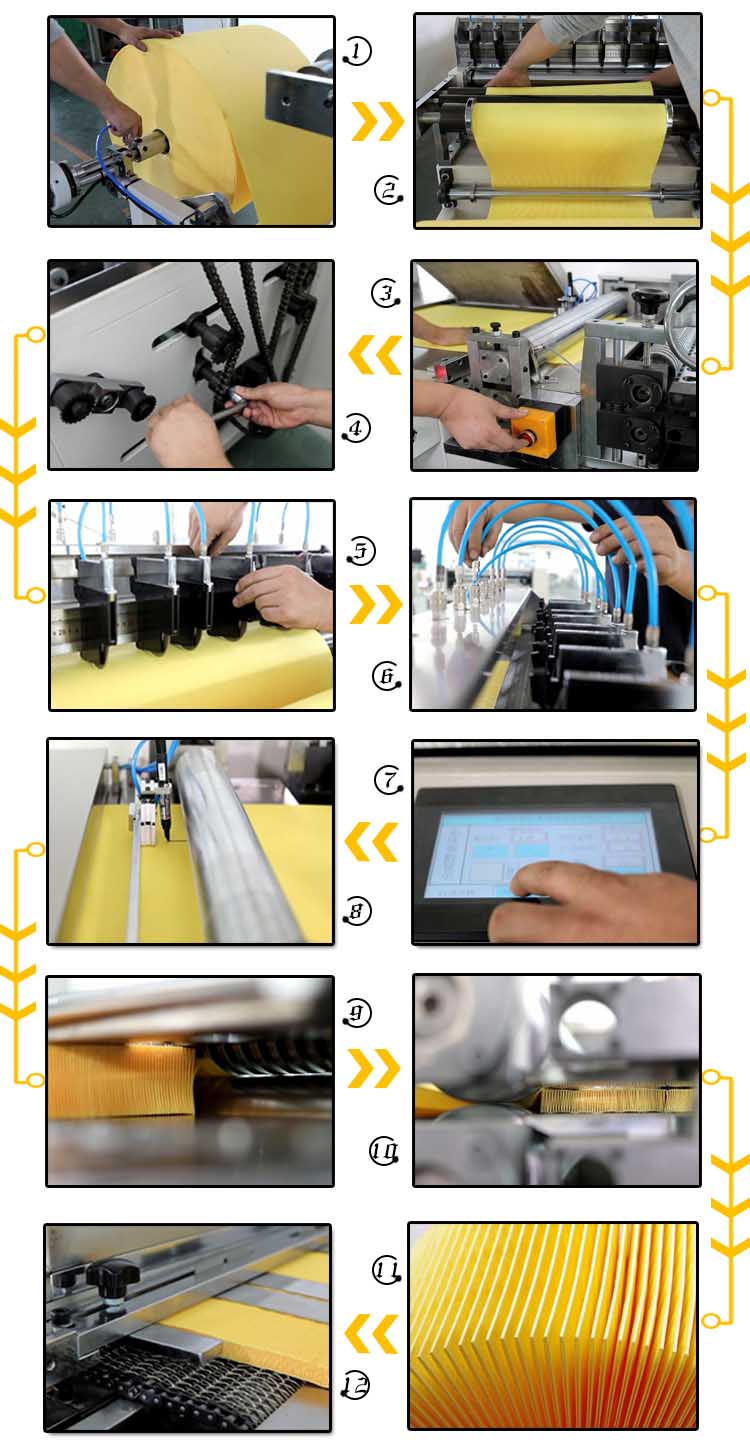

Flow Chart


Plgt-1000n Newest Full-auto Rotary Filter Paper Pleating Production Line



Q1: What is the PLGT-1000N Newest Full-auto Rotary Filter Paper Pleating Production Line used for?
A: It automatically pleats filter paper for air, oil, and fuel filters in high-volume production.

Q2: Is the PLGT-1000N fully automatic?
A: Yes, it integrates feeding, pleating, heating, forming, and stacking.

Q3: What materials can the PLGT-1000N process?
A: Filter paper, non-woven fabrics, and composite filter media.

Q4: Does the PLGT-1000N improve pleat consistency?
A: Yes, rotary pleating ensures uniform pleat height and spacing.

Q5: Can the PLGT-1000N be adjusted for different pleat heights?
A: Yes, pleat depth and pitch are adjustable.
