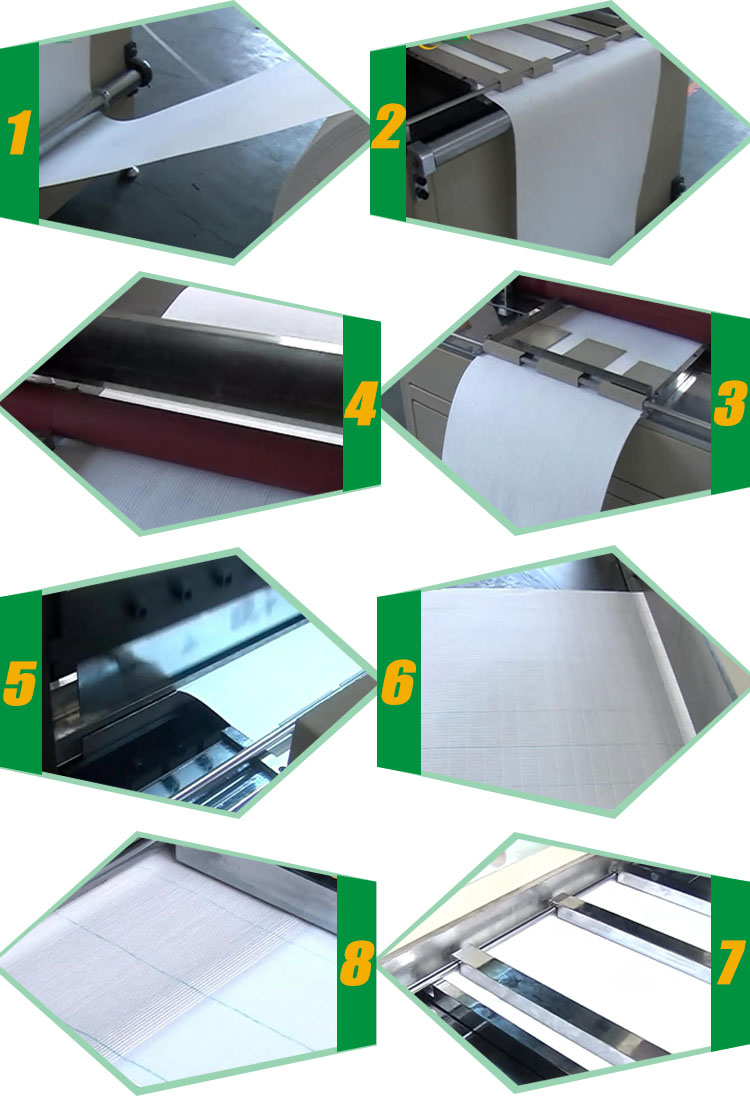

Consists
1. Auto paper de-coiler
2. Pre-slitting conveyor
3. Marker
4. Auto counter
5. Filter paper pleating machine (equipped with pre-heater and monitor)
Specification
| Model 55-1050-II Pre-slitter | |
| Speed | 1050mm |
| Adjustable width | 32-1100mm |
| Power supply | 220V/50HZ |
| Motor power | 0.75kw |
| Working air pressure | 0.6Mpa |
| M/C weight | 350kg |
| Size |
1500*1300*1100 |
| Mark 55-1050-II | |
| Max width for marking | 1050mm |
| Adjustable marking distance | 8-55mm |
| Power supply | 380V/50HZ |
| Motor power | 1.1kw |
| Size | 1550*750*1100mm |
| Pleating machine 55-1050-II | |
| Max width | 1050mm |
| Adjustable pleating height | 8-55mm |
| Pleating speed | 0-110pleats/min |
| Power supply | 380v/50hz |
| Motor power | 5kw |
| Pre-heater power | 7.5kw |
| Heating temp | normal-200° |
| Working air pressure | 0.6MPa |
| Size | 1670*1720*1240 |
| Weight | 650KG |
Features

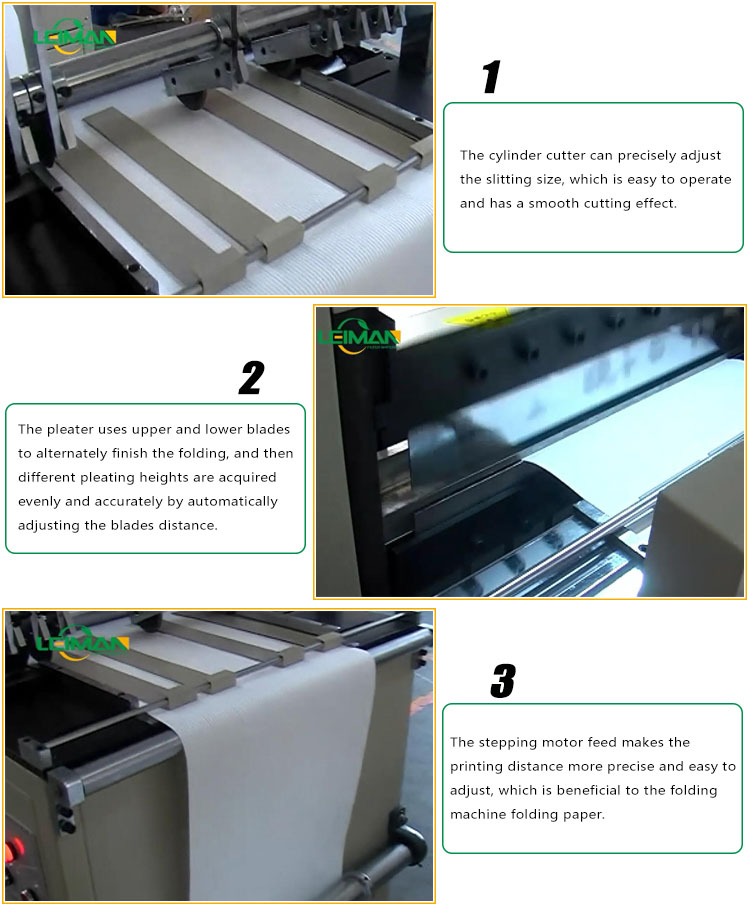

1. The pre-slitting machine can accurately and freely adjust the cutting dimensions through frequency converter speed regulation and cylinder blades in different filter sizes. It is simple operated but smooth and effective. After slitting the paper the conveyor for feeding the filter paper runs in synchronism with th marking machine by equipping the monitoring system.
2. The marking machine can mark in different pleat sizes, the marking distance can be set freely by the computer screen, and accurately marking distance will be appeared with the step motor loading.
3. The pleater uses upper and lower blades to alternately finish the folding, and then different pleating heights are acquired evenly and accurately by automatically adjusting the blades distance.
4. After marking, the filter paper will be pleated and pre-heated.
5. The machine is also suitable for folding the iron wire fabric and non-woven fabric of the hydraulic filter , even the multilayer folding.
Applications
The production line is applied to auto tri-filter industry, hydraulic pressure, purification and water treatment industries, etc.
