Specification
1 Seal speed:2pcs/min
2 Filter element diameter:Ф400mm
3 Filter element length:1000mm
4 Main machine power:4.2kw
5 Working air pressure:0.6Mpa
6 Power supply:380v/50Hz
7 Temp.control scope:normal temp.~300℃
8 Main machine size:1500×730×1400(L×W×H)

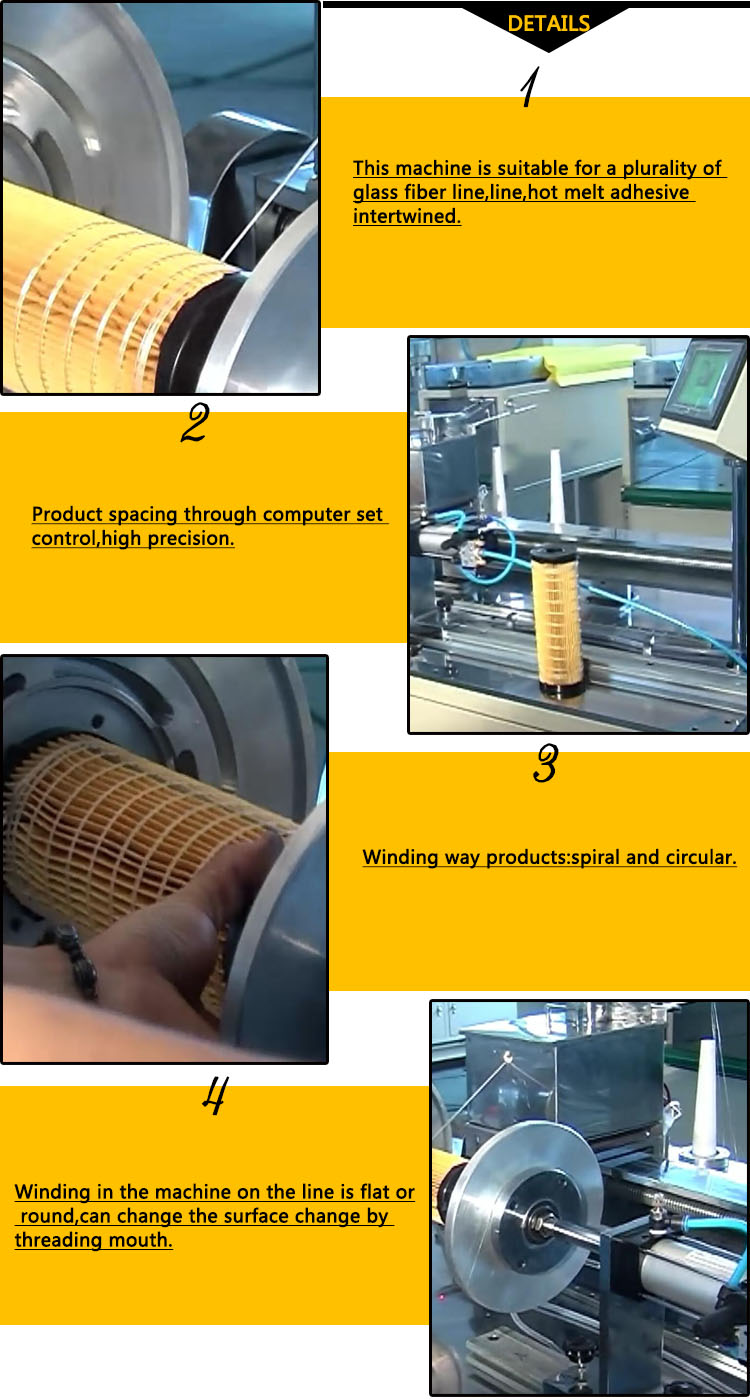

Features
1 This machine is suitable for a plurality of glass fiber line,line,hot melt adhesive intertwined.
2 Product spacing through computer set control,high precision.
3 Winding way products:spiral and circular.
4 Winding in the machine on the line is flat or round,can change the surface change by threading mouth.
A: It threads and bonds filter paper for heavy-duty air filters using hot melt glue.
Q2: Is the PLRX-1000 suitable for large air filters?
A: Yes, it is designed for HDAF production lines.
Q3: What materials can the PLRX-1000 process?
A: Filter paper, mesh, and composite media.
Q4: Does the PLRX-1000 improve bonding efficiency?
A: Yes, it ensures stable glue application and strong pleat bonding.
Q5: Can the PLRX-1000 be integrated into a full production line?
A: Yes, it can connect with pleating and drying equipment.
